Getting Started: Document Viewer with ASP.NET Core and Linux WSL Support

In this article, we will create a simple document viewer application using the Document Viewer component from the TX Text Control .NET Server for ASP.NET product. We will use ASP.NET Core and run the application on Linux using Windows Subsystem for Linux (WSL).

Creating the Application

Make sure that you downloaded the latest version of Visual Studio 2022 that comes with the .NET 8 SDK.

1. In Visual Studio 2022, create a new project by choosing Create a new project.

2. Select ASP.NET Core Web App (Model-View-Controller) as the project template and confirm with Next.

3. Choose a name for your project and confirm with Next.

4. In the next dialog, choose .NET 8 (Long Term Support) as the Framework and confirm with Create.

Adding the NuGet Packages

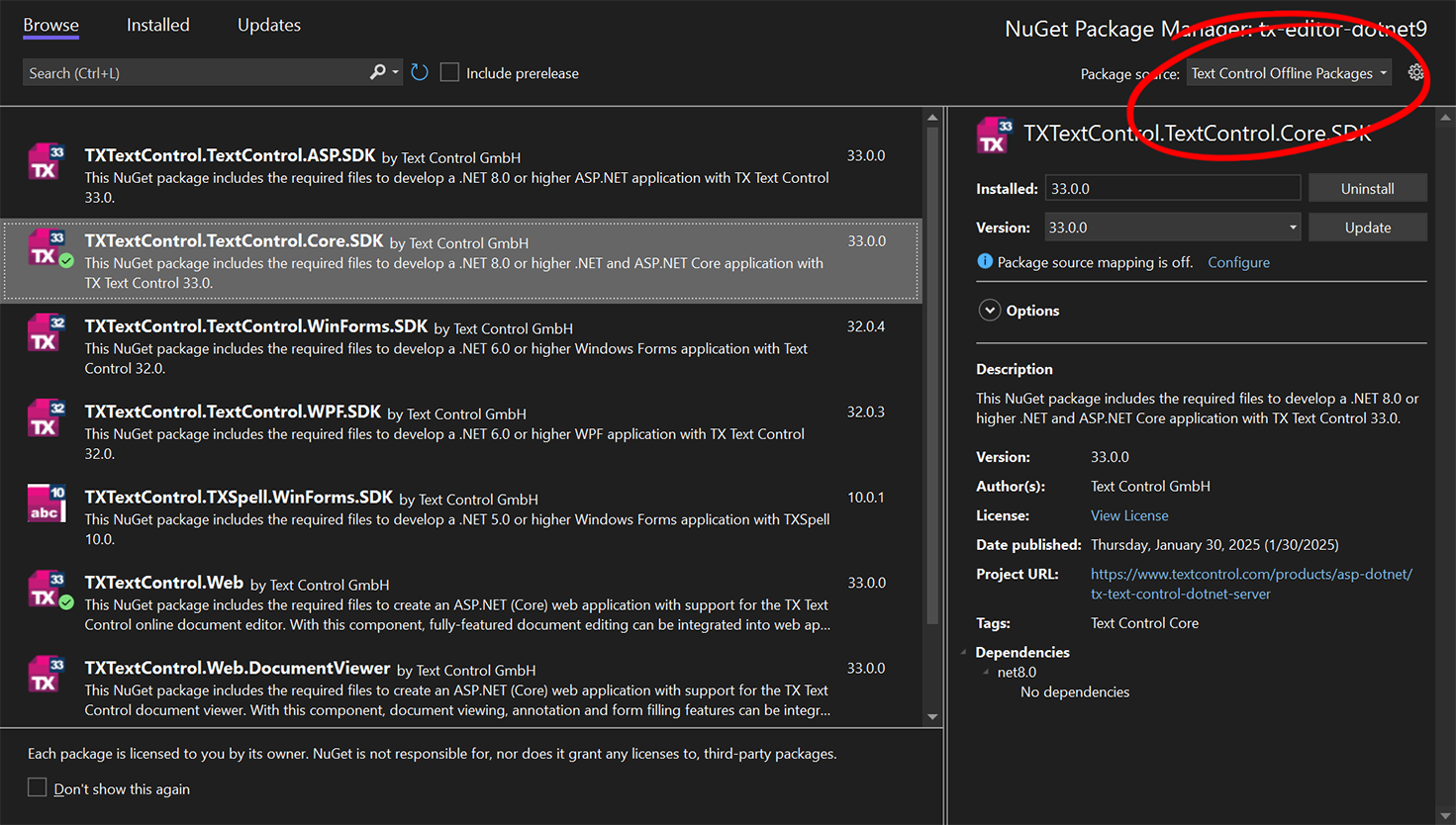

5. In the Solution Explorer, select your project and choose Manage NuGet Packages... from the Project menu. Select Text Control Offline Packages as the Package source.

Install the following packages:

• TXTextControl.Web.DocumentViewer
• TXTextControl.TextControl.Core.SDK

Adding the Control to the View

6. Find Index.cshtml in Views -> Home and replace its content with the document viewer code.

• C#

​@using TXTextControl.Web.MVC.DocumentViewer
@using System.Text

<div style="width: 800px; height: 600px;">

@Html.TXTextControl().DocumentViewer(settings => {
    settings.DocumentData = Convert.ToBase64String(
        Encoding.ASCII.GetBytes("<strong>Sample Content</strong>"));
    settings.Dock = DocumentViewerSettings.DockStyle.Fill;
}).Render()

</div>

<script>

    var jsonAnnotations = '[[{"pen":{"type":"comment","objectWidth":32,"objectHeight":32},"user":"Unknown User","location":{"x":127,"y":50},"time":1658908087097,"comments":[{"comment":"Welcome to Text Control","user":"Unknown User","date":1658908100339,"id":"c8d818ce-ff1e-4c0c-b78c-6ba95a98dede","status":"none"}],"id":"feed80ff-1c94-4abf-9838-3e833faa4092","status":"Accepted"}]]';

    window.addEventListener("documentViewerLoaded", function () {
        TXDocumentViewer.annotations.showToolbar(true);
        TXDocumentViewer.annotations.load(jsonAnnotations);
    });

</script>

Starting the Application

7. Select WSL as the startup profile and start the application.

Enable WSL (Windows Subsystem for Linux)

Follow these steps to enable WSL:

• 1. Open PowerShell as an administrator.
• 2. Run wsl --install to install the default Linux distribution.
• 3. Restart your computer.

To set WSL 2 as the default version, run wsl --set-default-version 2 in PowerShell.
